Scanning Lens

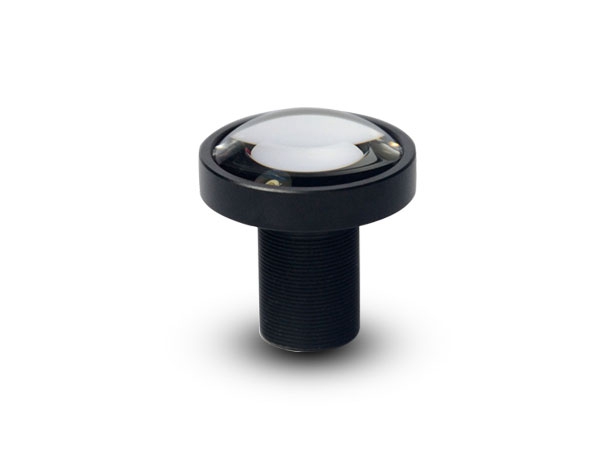

4.2mm 2MP Fixed-Iris

4.2mm  2MP  Fixed-Iris
  • 2MP
  • 1/1.8"
PDF Download
M12-4.2IR(2MP)
Resolution 2 Megapixel
Image format 1/1.8"(D8.261*H7.2*V4.05)
Focal length 4.2mm
Aperture F1.8
Mount M12
Field Angle
D×H×V(°)
°" 1/1.8"(D8.261*H7.2*V4.05)
D 94
H 86.3
V 54.1
Optical Distortion -6.90%
CRA ≤8.44°
M.O.D. 0.3m
Dimension Φ25×27.15mm
Weight 15g
Flange BFL /
BFL 6.18mm(in air)
MBF 6.12mm(in air)
IR Correction Yes
Operation Iris Fixed
Focus /
Zoom /
Operating temperature -30℃~+70℃

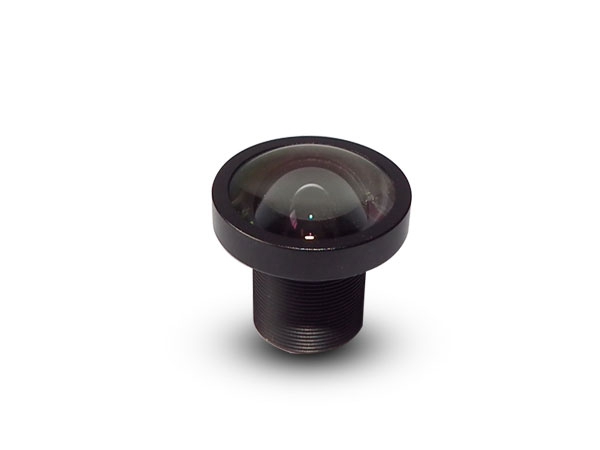

3mm 2MP Fixed-Iris

3mm  2MP  Fixed-Iris
  • 2MP
  • 1/2.7"
PDF Download
M12-3IR(2MP)
Resolution 2 Megapixel
Image format 1/2.7"
Focal length 3.0(±5%)mm
Aperture F2.1±10%
Mount M12
Field Angle
D×H×V(°)
±5%
°" 1/2.7" 1/3"
D 96.7 91.5
H 84.4 78.5
V 67.9 62
Optical Distortion -6.60%
CRA ≤15.12°
M.O.D. 0.3m
Dimension Φ20×20.24mm
Weight 8g
Flange BFL) /
BFL 5.03mm(in air)
MBF 4.92mm(in air)
IR Correction Yes
Operation Iris Fixed
Focus /
Zoom /
Operating temperature -20℃~+60℃
