Vari-Focal Lens

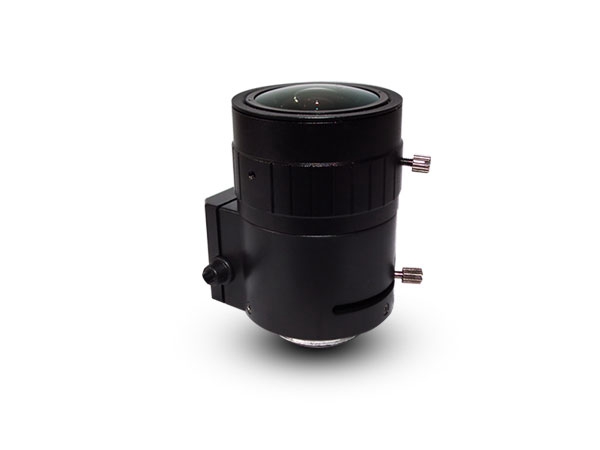

2.8~9.0mm 5MP DC-Iris

2.8~9.0mm  5MP  DC-Iris
  • 5MP
  • 1/2.7"
PDF Download
CS-D02809IR(5MP)
Pixel 5 MegaPixel
Image format 1/2.7"
Focal length 2.8~09mm
Aperture F1.4
Mount CS
Field Angle
D×H×V(°)
°" 1/2.7 1/3 1/4
  Wide Tele  Wide Tele Wide Tele
D 158 42 137.4 38.1 85 25.3
H 120 34.3 104 30.4 66.4 20.3
V 84.6 25.3 75.8 22.8 50 15.2
Optical Distortion -76.03%~-4.6%(1/2.7)
CRA ≤7.86°(Wide)
≤7.66°(Tele)
M.O.D. 0.3mm
Dimension Φ39.6×51.8×66.7mm
Weight 114±2g
Flange BFL 12.526mm
BFL 9.92mm
MBF 7.8mm
IR Correction Yes

Operation
Iris DC
Focus Manual
Zoom Manual
Operating temperature -20℃~+60℃

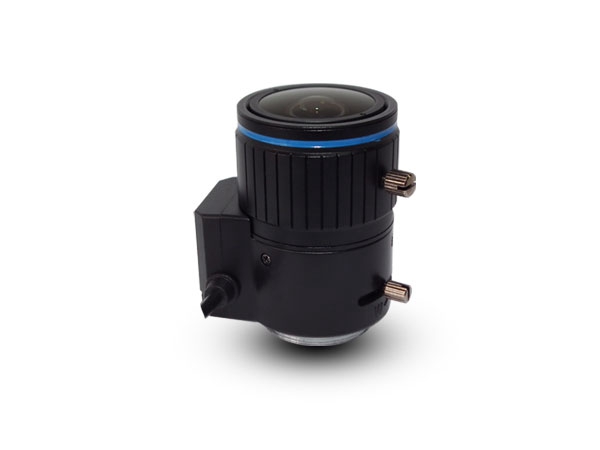

2.8~12mm 5MP DC-Iris

2.8~12mm  5MP  DC-Iris
  • 5MP
  • 1/2.7"
PDF Download
CS-D02812IR(5MP)
Pixel 5 MegaPixel
Image format 1/2.7"
Focal length 2.8~12mm
Aperture F1.6
Mount CS
Field Angle
D×H×V(°)
°" 1/2.7 1/3 OV4689
  Wide Tele Wide Tele Wide Tele
D 137.8 37.2 120.1 33.9 119.1 34.8
H 102.6 29.9 91.3 27.1 100.2 30.3
V 74.3 22.6 66.3 20.3 53.5 17.1
Optical Distortion -69.58%~-3.3%
CRA ≤7.11°(Wide)
≤8.75°(Tele)
M.O.D. 0.3mm
Dimension Φ33.7×57.6mm
Weight 70.2±2g
Flange BFL 12.53mm
BFL 7.05mm~14.8mm
MBF 6.65mm~8.35mm
IR Correction Yes

Operation
Iris DC
Focus Manual
Zoom Manual
Operating temperature -30℃~+70℃

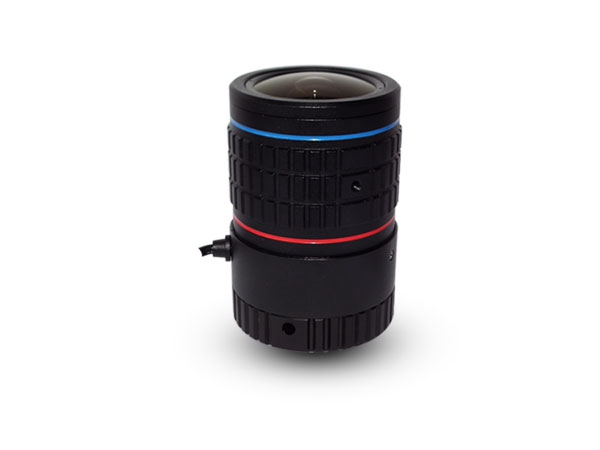

3.6~10mm 6MP DC-Iris

3.6~10mm  6MP  DC-Iris
  • 6MP
  • 1/1.8"
PDF Download
CS-D03610IR(6MP)
Pixel 6 MegaPixel
Image format 1/1.8"
Focal length 3.6~10mm
Aperture F1.8
Mount CS
Field Angle
D×H×V(°)
°" 1/1.8 1/2.5 1/3
  Wide Tele Wide Tele Wide Tele
D 156 51 117 41.9 93.2 35
H 117 41.9 89.6 33.9 72.6 28
V 81 31 64.8 25 53.8 20.9
Optical Distortion -77.01%~-6.51%(max)
CRA ≤10.92°(Wide)
≤11.25°(Tele)
M.O.D. 0.3mm
Dimension Φ32.6×39.2~43.1mm
Weight 55±2g
Flange BFL 12.53mm(in air)
BFL 8.35mm(in air)
MBF 7.45mm(in air)
IR Correction Yes

Operation
Iris DC
Focus Manual
Zoom Manual
Operating temperature -20℃~+60℃

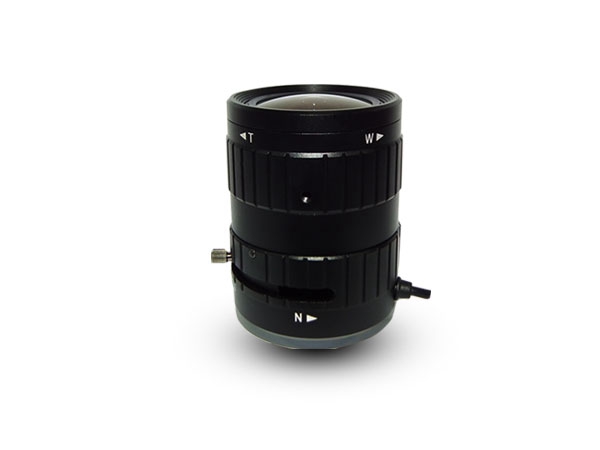

6~22mm 5MP DC-Iris

6~22mm  5MP   DC-Iris
  • 5MP
  • 1/2.5"
PDF Download

CS-D0622IR(5MP)
Pixel 5 MegaPixel
Image format 1/2.5"
Focal length 06~22mm
Aperture F1.6
Mount CS
Field Angle
D×H×V(°)
°" 1/2.5 1/3 1/4
  Wide Tele Wide Tele Wide Tele
D 58 20.4 46.5 18 34.5 12.6
H 46.4 16.3 37.2 14.4 27.6 10.1
V 34.8 12.2 27.9 11.4 22.5 7.6
Optical Distortion  -0.61~-15.6%(1/2.5")
CRA ≤11.94°(Wide)
≤11.38°(Tele)
M.O.D. 0.3mm
Dimension Φ33×44.1mm
Weight 66.5±2g
Flange BFL 12.5mm
BFL 6.4mm
MBF 6.1~8mm
IR Correction Yes

Operation
Iris DC
Focus Manual
Zoom Manual
Operating temperature -20℃~+60℃

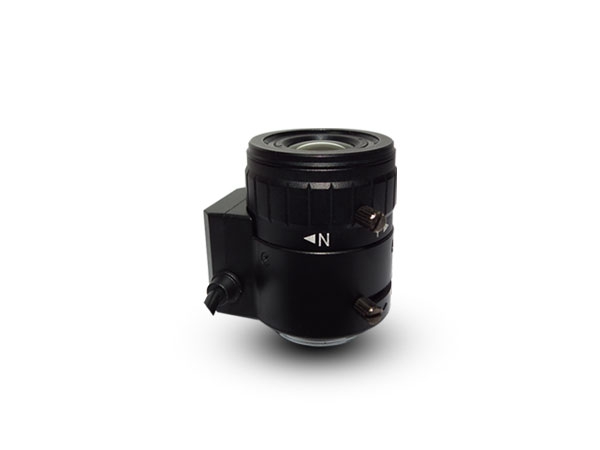

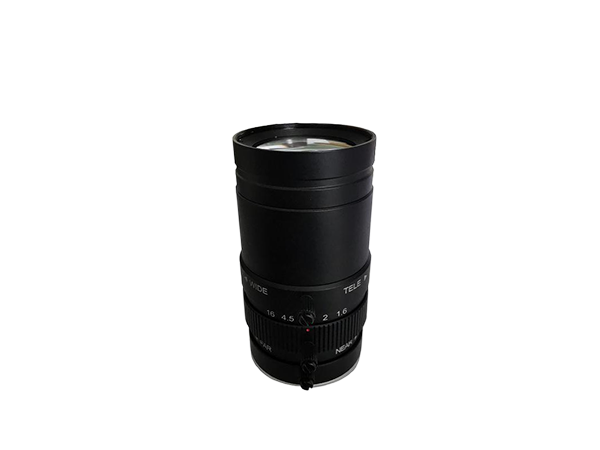

4~18mm 3MP DC-Iris

4~18mm  3MP  DC-Iris
  • 3MP
  • 1/1.8"
PDF Download
C-D0418IR(3MP)-2
Resolution 3 MegaPixel
Image format 1/1.8"
Focal length 4~18(±5%)mm
Aperture F1.6±10%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1/1.8 1/2 1/3
  Wide Tele Wide Tele Wide Tele
D 137 31 120 29 85.5 21
H 110 25 92 23 69 17
V 82 19 67 17.2 52 13
Optical Distortion -57.5%~-2.7% -46.5%~-2.2% -24.8%~-1.2%
M.O.D. 0.3m
Weight 207.3±5g
Flange BFL 17.526mm
BFL 8~20mm
MBF 7.9~11.1mm
IR Correction Yes

Operation
Iris DC
Focus Manual
Zoom Manual
Operating temperature -20℃~+60℃

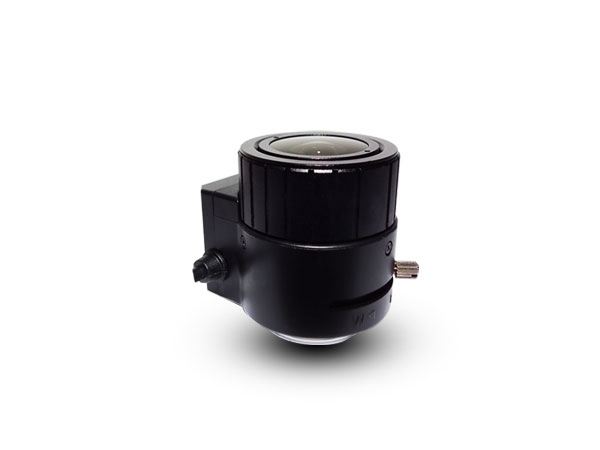

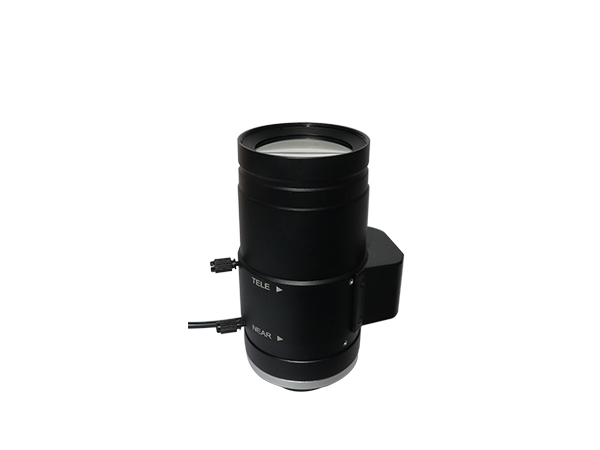

3.8~16mm 8MP DC-Iris

3.8~16mm  8MP  DC-Iris
  • 8MP
  • 1/1.8"
PDF Download
CS-D03816IR(8MP)
Pixel 8 MegaPixel
Image format 1/1.8"
Focal length 4.1-15.45±5%mm
Aperture F1.65-3.15±5%
Mount CS
Field Angle
D×H×V(°)
±5%
°" 1/1.8 1/2 1/3
  Wide Tele Wide Tele Wide Tele
D 128 34.4 114 31.2 85.6 23.3
H 103.5 28 91.5 25.8 68 18.75
V 75.5 20.7 68 18.75 51 14
Optical Distortion -48~-2%(1/1.8")
CRA ≤18.33°(Wide)
≤9.1°(Tele)
M.O.D. 1.5m
Dimension φ49.5×74.4~75.1mm
Weight 240±5g
Flange BFL 12.526mm
BFL 7.41~17.89mm
MBF 7.52~8.52mm
IR Correction Yes

Operation
Iris DC
Focus Manual
Zoom Manual
Operating temperature -20℃~+60℃
