1" 8MP

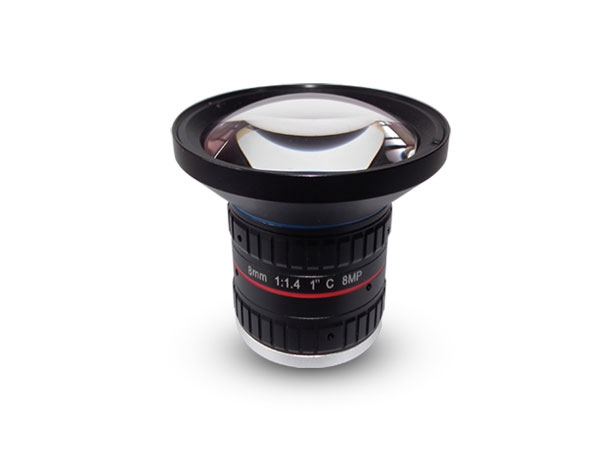

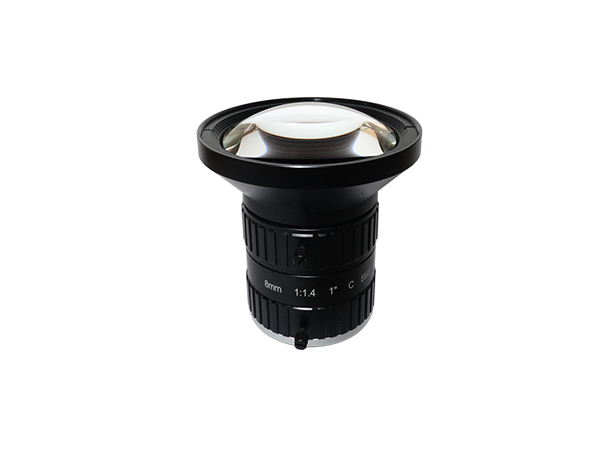

8mm 8MP Manual

8mm 8MP Manual
  • 8MP
  • 1"
PDF Download



C-M8(8MP)-S1F14
Resolution 8 Megapixel
Image format 1"
Focal length 8±5%mm
Aperture F1.4±10%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1 2/3
D 96 72
H 84 60.5
V 68 48
Optical Distortion -4.65%(1")
CRA ≤13.78°
M.O.D. 0.5m
Dimension Φ67×74.4mm
Weight 303g
Flange BFL 17.526mm
BFL 10.5mm
MBF 10.1mm
IR Correction No
Operation Iris Manual
Focus Manual
Zoom /
Operating temperature -20℃~+60℃

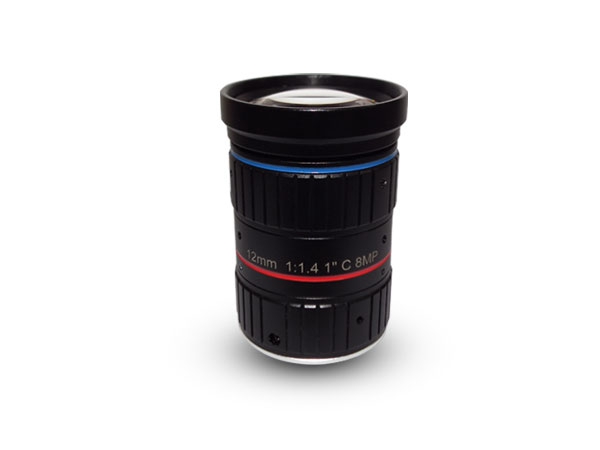

12mm 8MP Manual

12mm  8MP  Manual
  • 8MP
  • 1"
PDF Download



C-M12(8MP)-S1F14
Resolution 8 Megapixel
Image format 1"
Focal length 12mm
Aperture F1.4
Mount C
Field Angle
D×H×V(°)
°" 1(IMX267)
D 67.35
H 60.4
V 33.16
Optical Distortion -5.79%(MAX)
CRA ≤6.88°
M.O.D. 0.5m
Dimension φ43.4×62.1
Weight 160±2g
Flange BFL 17.526mm
BFL 12.9mm
MBF 12.1mm
IR Correction /
Operation Iris Manual
Focus Manual
Zoom /
Operating temperature -20℃~+60℃

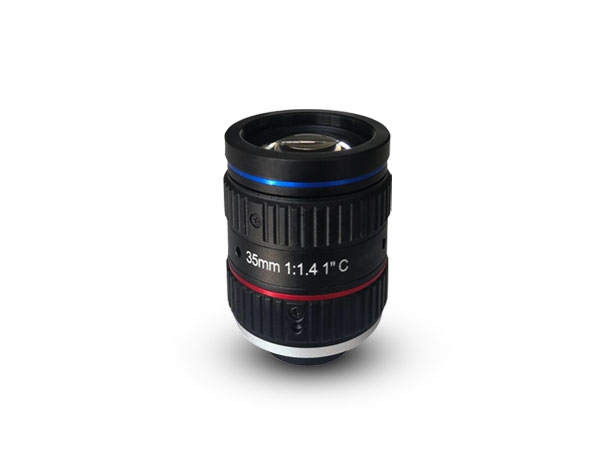

35mm 8MP Manual

35mm  8MP  Manual
  • 8MP
  • 1"
PDF Download



C-M35(8MP)-S1F14
Resolution 8 Megapixel
Image format 1"
Focal length 35mm
Aperture F1.4
Mount C
Field Angle
D×H×V(°)
°" 1 2/3 1/2
D 26 17.8 12.9
H 20.7 14.25 10
V 15.5 10.7 7.75
Optical Distortion -3.8%(1")
CRA       ≤12.65°@φ16mm
M.O.D. 0.8m
Dimension Φ38×56mm
Weight 147.7±5g
Flange BFL 17.526mm
BFL 12.5mm
MBF 10.74mm
IR Correction No
Operation Iris Manual
Focus Manual
Zoom /
Operating temperature -20℃~+60℃
