1.1"12MP

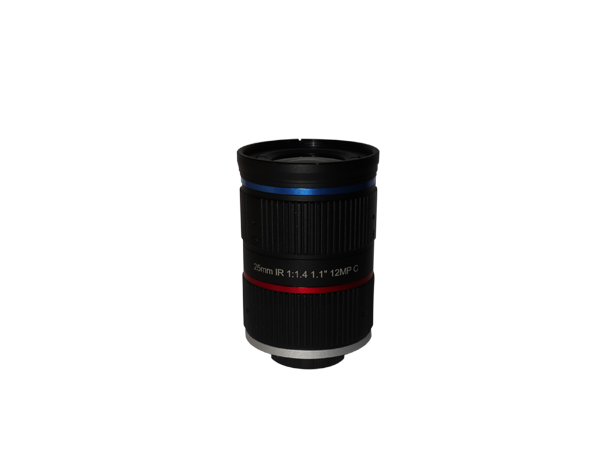

25mm 12MP Manual

25mm 12MP Manual
  • 12MP
  • 1.1"
PDF Download



C-M25IR(12MP)-11F14
Resolution) 12 Megapixel
Image format 1.1"
Focal length 25±5%mm
Aperture F1.4±10%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1.1
(16:11)

1
(4:3)


D 40.8  37.1
H 33.4  29.5
V 22.7  22.0
Optical Distortion -6.2%(y=8.8mm)
CRA ≤6.7°(y=8.8mm)
M.O.D. 1.5m
Dimension φ46×73.0mm
Weight /
Flange BFL 17.526mm
BFL 18.96mm(in air)
MBF 13.526mm(in air)
IR Correction Yes

Operation
Iris Manual
Focus Manual
Zoom /
Operating temperature -30℃~+70℃

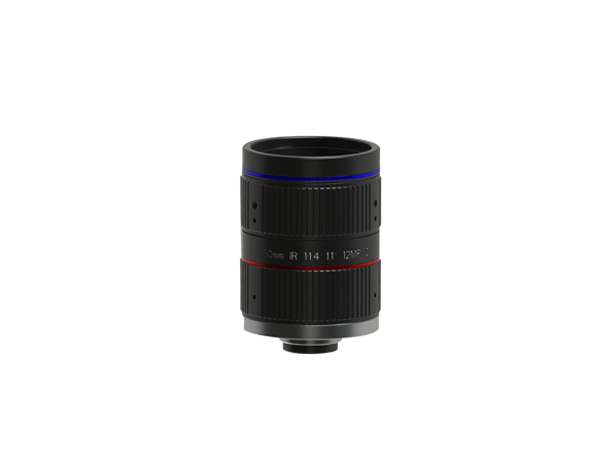

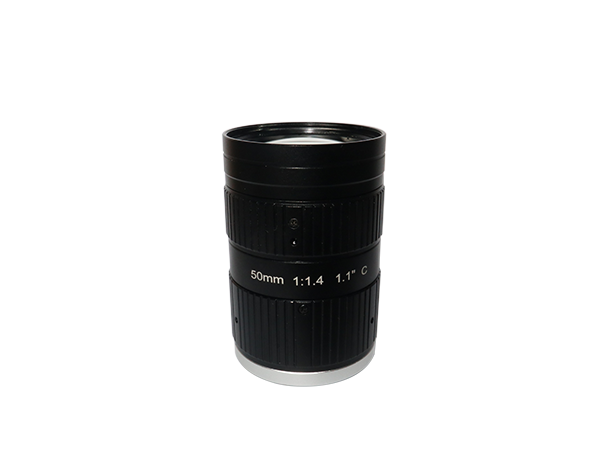

50mm 12MP Manual

50mm 12MP Manual
  • 12MP
  • 1.1"
PDF Download



C-M50IR(12MP)-11F14
Resolution) 12 Megapixel
Image format 1.1"
Focal length 50±5%mm
Aperture F1.5±10%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1.1
(IMX533)

D 19.1
H 13.6
V 13.3
Optical Distortion -2.13%Φ17.6mm
CRA ≤10.5°
M.O.D. 1m
Dimension φ55×72.1mm
Weight /
Flange BFL 17.526mm
BFL 11.453mm(in air)
MBF 9.872mm(in air)
IR Correction Yes

Operation
Iris Manual
Focus Manual
Zoom /
Operating temperature -30℃~+70℃

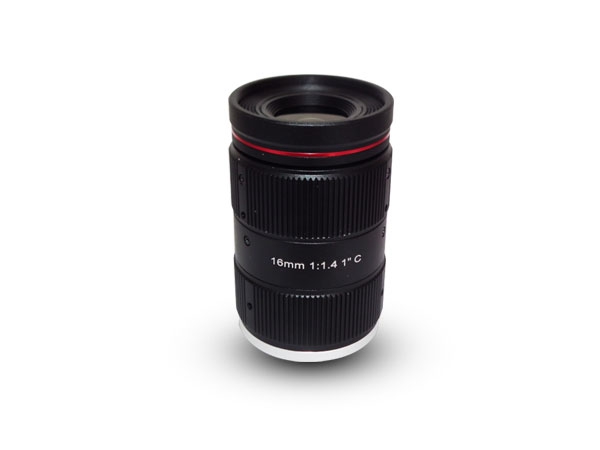

16mm 12MP Manual

16mm  12MP  Manual
  • 12MP
  • 1.1"
PDF Download
C-M16(12MP)-1F14
Resolution) 12 Megapixel
Image format 1.1"
Focal length 16±5%mm
Aperture F1.6±5%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1.1
(IMX428)
1
(IMX305)
1
(16*12.8*9.6)
D 59.2  54.1  54
H 49.16  48.1  43
V 33.6  25.9  33
Optical Distortion 5.9%Φ16mm
CRA ≤7.2°Φ16mm
M.O.D. 0.5m
Dimension φ43×69.2~70.7mm
Weight 248±5g
Flange BFL 17.526mm
BFL 13.863mm(in air)
MBF 12.2mm(in air)
IR Correction NO

Operation
Iris Manual
Focus Manual
Zoom /
Operating temperature -30℃~+70℃

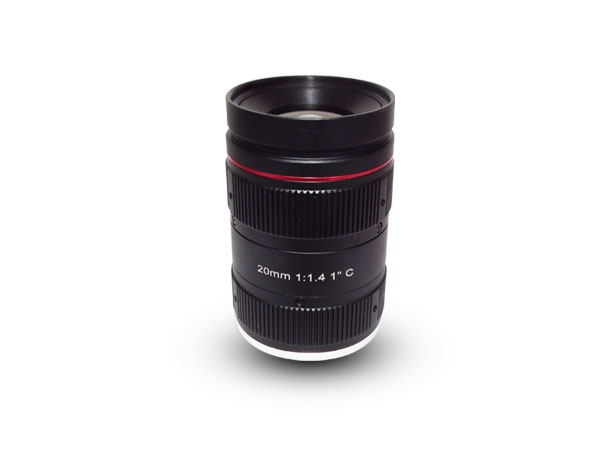

20mm 12MP Manual

20mm  12MP  Manual
  • 12MP
  • 1.1"
PDF Download
C-M20(12MP)-1F14
Resolution 12 Megapixel
Image format 1.1"
Focal length 20±5%mm
Aperture F1.6±5%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1.1
(IMX428)
1
(IMX305)
1
(16*12.8*9.6)
D 49.06  44.6  44.3
H 42.4  39.4  35.7
V 27.96  21.0  26.8
Optical Distortion -4.9%Φ16mm
CRA ≤6.1°Φ16mm
M.O.D. 0.5m
Dimension φ45×67.7mm
Weight 212±5g
Flange BFL 17.526mm
BFL 12.474mm(in air)
MBF 13.5mm(in air)
IR Correction NO
Operation Iris Manual
Focus Manual
Zoom /
Operating temperature -30℃~+70℃

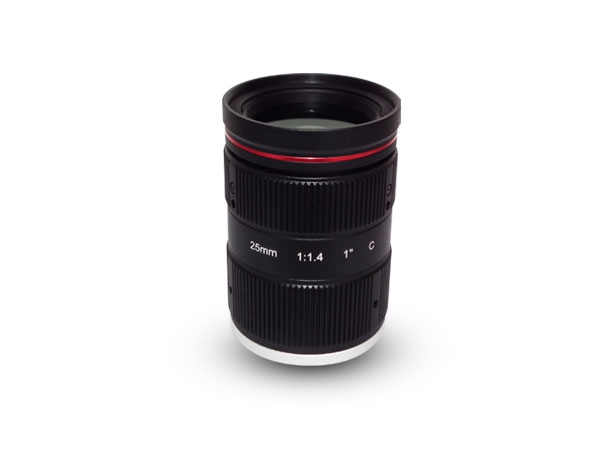

25mm 12MP Manual

25mm  12MP  Manual
  • 12MP
  • 1.1"
PDF Download
C-M25(12MP)-1F14
Resolution 12 Megapixel
Image format 1"
Focal length 25±5%mm
Aperture F1.4±10%
Mount C
Field Angle
D×H×V(°)
±5%
°" 1.1
(IMX428)
1
(IMX305)
1
(16*12.8*9.6)
D 40.03  36.6  36.5
H 33  32.4  29.2
V 22.87  17.3  21.9
Optical Distortion -2.9%@Φ16mm
CRA ≤5.8°@Φ16mm
M.O.D. 1m
Dimension Φ43×62.1~64.3mm
Weight 195±5g
Flange BFL 17.526mm
BFL 11.70mm(in air)
MBF 11.10mm(in air)
IR Correction NO
Operation Iris Manual
Focus Manual
Zoom /
Operating temperature -30℃~+70℃
