Business >> Lens Division >> Products >> Infrared lenses >> Long Wavelength Infrared Zoom Focus lensesLong Wavelength Infrared Zoom Focus lenses

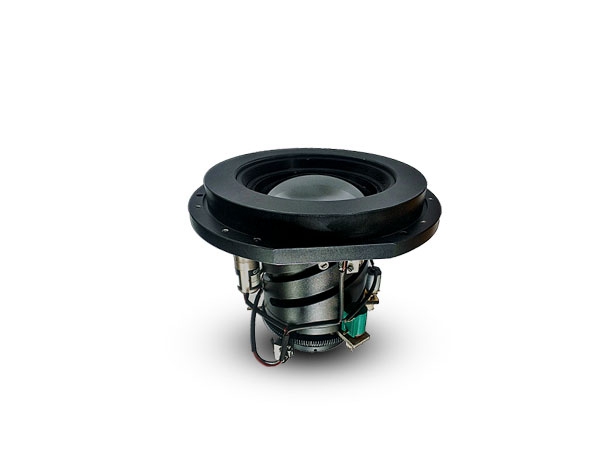

| FT530001 | |
| Optical Parameter | Value |
| Focal Length | 20mm~45mm |
| F# | 1.1 |
| Transmission（8-12μm) | 82% |
| Wavelength | 8~14μm |
| Mechanical Parameter | Value |
| Focus Type | Electric Focus |
| Focus Range | 5m~∞@f=25mm,8m~∞@f=45mm |
| Mount Type | Flange Interface |
| Dimension | φ148mm,L120.6mm |
| Weight | 1340g |
| Applicable Environment | Value |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+65℃ |
| Sealing | IP67 front lens |
| Detector | FOV |
| 336x256,17μm | 7.2°x5.5°~16.2°x12.4° |
| 384x288,17μm | 8.3°x6.2°~18.5°x13.9° |
| 384x288,25μm | 12.1°x9.1°~26.9°x20.4° |
| 640x512,17μm | 13.7°x10.3°~30.4°x23.0° |

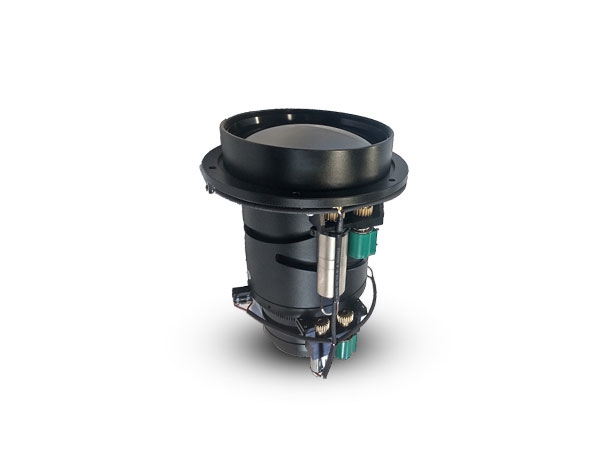

| FT530003 | |
| Optical Parameter | Value |
| Focal Length | 20mm~100mm |
| F# | 1.2 |
| Transmission（8-12μm) | 80% |
| Wavelength | 8~14μm |
| Mechanical Parameter | Value |
| Focus Type | Electric Focus |
| Focus Range | 5m~∞@f=20mm,10m~∞@f=100mm |
| Mount Type | Flange Interface |
| Dimension | φ150mm,L230mm |
| Weight | 1990g |
| Applicable Environment | Value |
| Operating Temperature | ‘-40℃~+60℃ |
| Storage Temperature | ‘-45℃~+65℃ |
| Sealing | IP67 front lens |
| Detector | FOV |
| 336x256,17μm | 3.3°x2.5°~16.6°x12.6° |
| 384x288,17μm | 3.7°x2.8°~19.0°x14.2° |
| 384x288,25μm | 5.5°x4.1°~28.0°x20.8° |
| 640x480,17μm | 6.2°x4.6°~31.7°x23.6° |

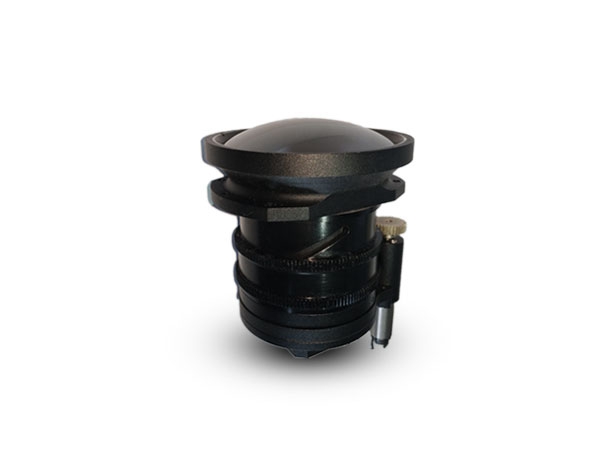

| FT530006 | |
| Optical Parameter | Value |
| Focal Length | 25mm&80mm |
| F# | 1.2 |
| Transmission（8-12μm) | 82% |
| Wavelength | 8~14μm |
| Mechanical Parameter | Value |
| Focus Type | Electric Focus |
| Focus Range | 5m~∞@f=25mm,20m~∞@f=80mm |
| Mount Type | Flange Interface |
| Dimension | φ88mm,L117.2mm |
| Weight | 725g |
| Applicable Environment | Value |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+65℃ |
| Sealing | IP67 front lens |
| Detector | FOV |
| 336x256,17μm | 4.0°x3.1°&13.2°x10.0° |
| 384x288,17μm | 4.6°x3.5°&15.0°x11.2° |
| 384x288,25μm | 6.7°x5.1°&22.2°x16.6° |
| 640x480,17μm | 7.6°x5.8°&25.2°x18.8° |
| 640x480,20μm | 9.0°x6.8°&22.2°x29.8° |
