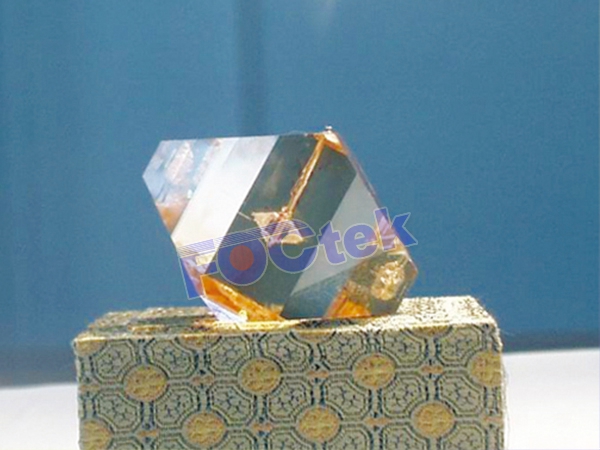

KTP


 KTP (KTiOPO4) is a nonlinear optical crystal, which possesses excellent nonlinear and electro-optic properties.It has large nonlinear optical coefficients and wide angular bandwidth and small walk-off angle,etc.which make it suitable for various nonlinear frequency conversion and wave guide online_ordering.

Due to very high effective nonlinearity (d eff ~8.3xd 36 (KDP)at 1.06μ m) and excellent optical properties,KTP perfectly suits as lasing material in various online_orderings .The phase matching range of KTP crystal lies in 0.99-3.3 μ m region .This allows us to use KTP as an intracavity and extracavity frequency double for the most commonly used lasers,such as Nd:YAG,Nd:Glass and Nd:YLF

 Capabilities :

1)
Aperture:1x1 ~ 10x10mm
2)
Length: 0.05 ~ 20mm
3)
Phase Matching Angle:
Determined by different homonic generartion
typical θ=90°; φ=23.5° for SHG 1064nm
4)
Phase matching type:Type II
5)
Typical Coating:

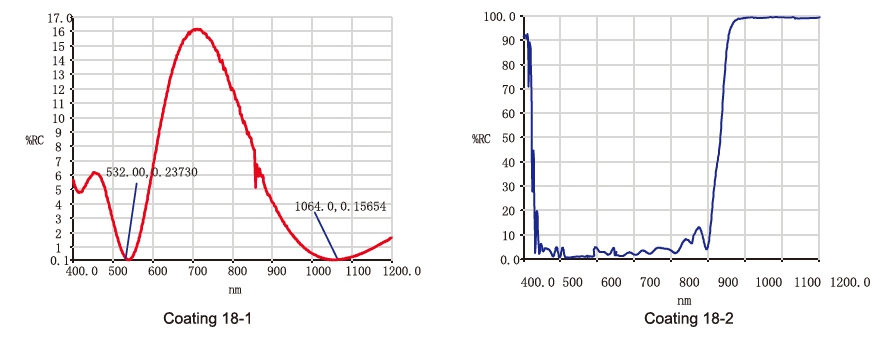

a) AR @1064nm R<0.1%; AR @ 532nm, R<0.25%. (see Coating 18-1)
b) HR @1064nm, R>99.8%; HT @808nm, T<0.5% (see Coating 18-2)
Different coating specification upon customer request.

Typical Specification and Tolerance:
1)
Angle tolerance: Δθ< ± 0.2°; Δφ< ±0.2°
2)
Dimension tolerance: (W ± 0.1mm) x (H ± 0.1mm) x (L + 0.2mm/-0.1mm)
3)
Flatness: λ/8 @ 633nm
4)
Scratch/Dig code: better than 10/5 Scracth/dig per MIL-O-13830A
5)
Parallelism: < 20 arc seconds
6)
Perpendicularity:< 5 arc minutes
7)
Wavefront distortion: < λ/8 @ 633nm
8)
Clear aperture: > 90% central area

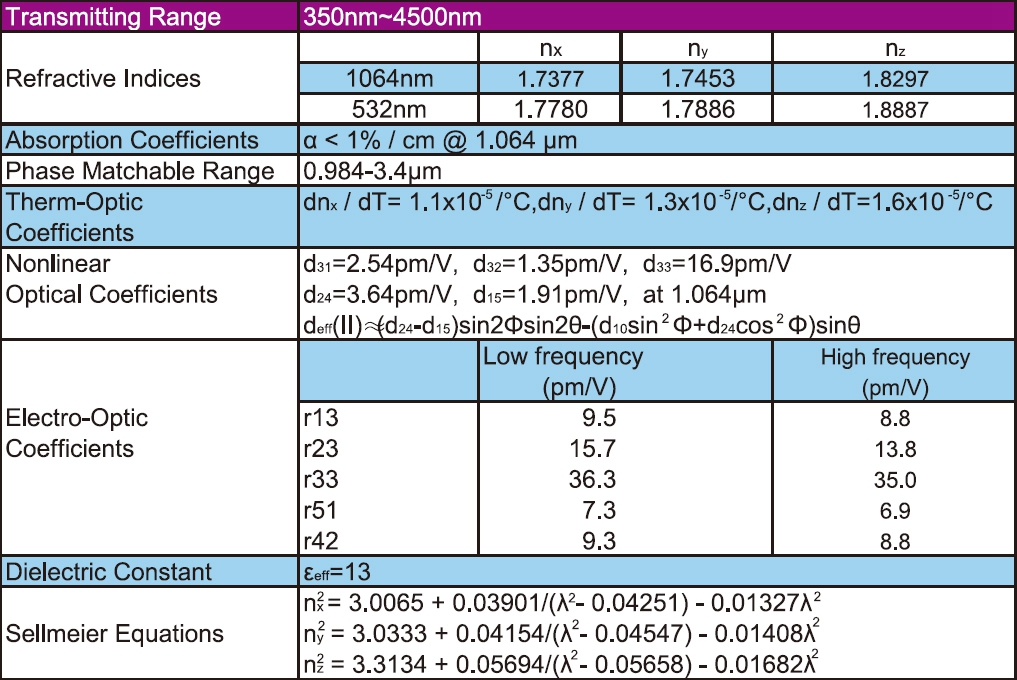

Physical and Optical Properties
Crystal structure Orthorhombic, point group mm 2
Melting point 1172°C incongruent
Cell parameters a=6.404?, b=10.616?, c=12.814?, Z=8
Curie point 936°C
Mohs hardness ~5
Density 3.01 g/cm 3
Color colorless
Hygroscopic susceptibility no
Specific heat 0.1643 cal/g.°C
Thermal conductivity 0.13 W/cm/°K
Electrical conductivity 3.5x10 -8 s/cm (c-axis, 22°C, 1KHz)

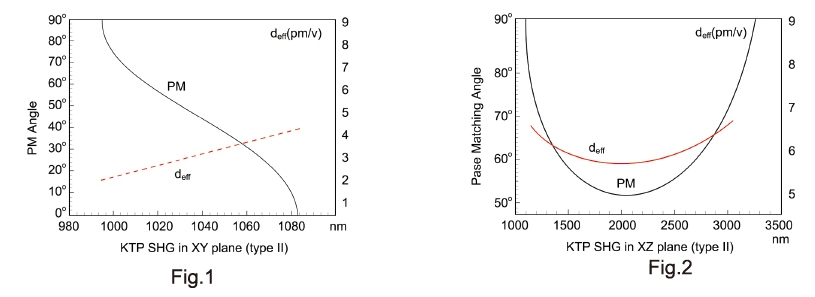

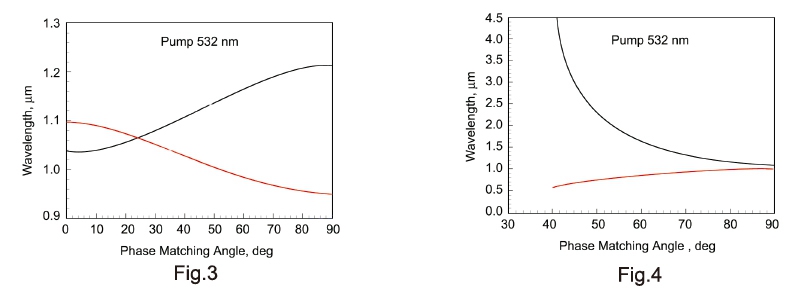

Fig. 1 represents Type 2 SHG tuning curve of KTP in x-y plane. In x-y plane the slope d(Dk)/dq is small. This corresponds to quasi-angular noncritical phase matching, which ensures the double advantage of a large acceptance angle and a small walk off

Fig. 2 represents Type 2 SHG tuning curve of KTP in x-z plane. in x-z plane the slope d(Dk)/dq is almost zero for wavelengths in the range 1.5-2.5 m m and this corresponds to quasi-wavelength noncritical phase matching, which ensures a large spectral acceptance. Wavelength noncritical phase matching is highly desirable for frequency conversion of short pulses.

Standard KTP for SHG of 1064nm
Part No.
Size (mm)
q
f
Coating
S1 S2
KTP001
3x3x5
90°
23.5°
AR@1064nm R<0.2%
AR@532nm R<0.5%
AR@1064nm R<0.2%
AR@532nm R<0.5%
KTP002
3x3x5
90°
23.5°
HR@1064nm R>99.8%
AR@ 532nm R<0.5%
AR@1064nm R<0.2%
AR@532nm R<0.5%
KTP003
3x3x10
90°
23.5°
HR@1064nm R>99.8%
AR@ 532nm R<0.5%
AR@1064nm R<0.2%
AR@532nm R<0.5%
Notes:
1.To inquiry or order a finished KTP crystals, please specify the specification listed above, we kindly request engineering drawing to specify orientation, Please consult us for the designs if you're sure about the phase matching angle for others' special online_ordering.
2.For information of handling and Mark of Mark of KTP.
