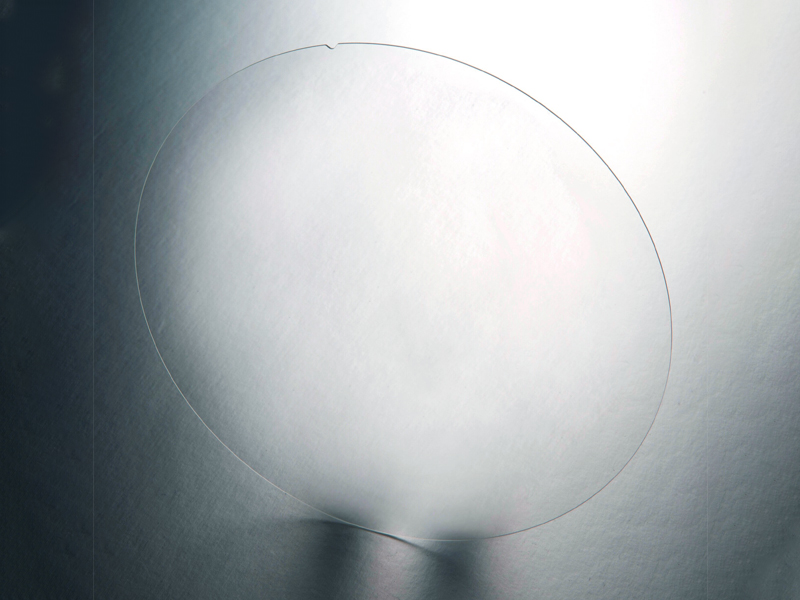

Glass Wafer


 FOCtek Glass Wafer:

* High Volume Double Side Polishing Capacity

* Large Coating Machine up to 1.8m Chamfer

* High Cost Efficiency for volume production


Glass Wafer can be used for:

* 3D imaging and sensing

* Wafer-level package

* Encapsulated glass carrier wafer

* MEMS

* Microdisplay

* Microfluidic technology

    Specification parameter

Product

FusedWindow/Wafer
Material Fused Silica/Optical Glass/ Silicon
Dimension(mm) 100mm/150mm/200mm/300mm
Thickness (mm) 0.2mm(100/150mm),0.3mm(200/300mm)
Tolerance (mm) +/- 0.02mm (Commercial),  +/- 0.002mm(Precision)
Surface Quality 40-20 (Commercial), 10-5 (Precision)

Surface Figure or Transmitted Wavefront

≤ 0.1 waves PV (per 25.4mm @ 632.8nm)
