Polarization Cube BeamSplitter

High Extinction Polarization Cube BeamSplitter

High Power Polarization Cube BeamSplitter

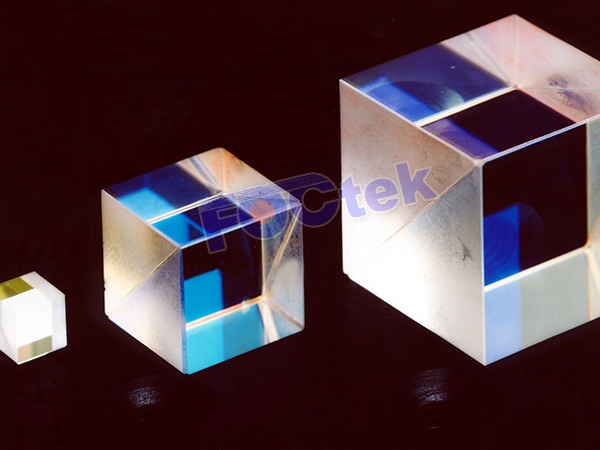

Polarizing Cube Beamsplitters split randomly polarized beams into two orthogonal,linearly,polarized components-S-polarized light is reflected at a 90deg.Angle while P-polarized light is transmitted.Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms.

Specification:

Dimension Tolerance: -----------------------------------------------------±0.2mm
Flatness: -----------------------------------------------------------------------l/4 @ 632.8 nm per 25mm
Surface Quality: --------------------------------------------------------------60-40 scratches and dig
Extinction Ratio: -------------------------------------------------------------->100:1
Beam Deviation: -------------------------------------------------------------<3 arc minutes

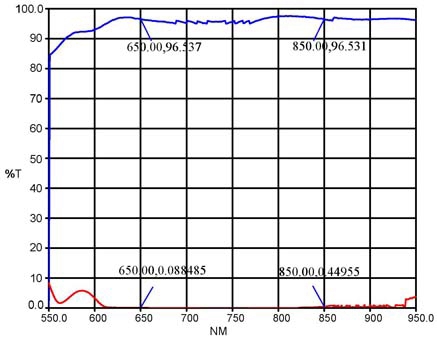

Principal Transmittance: ---------------------------Tp>95% and Ts<1%♦

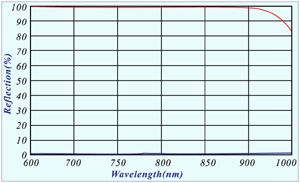

Principal Reflectance: ------------------------------Rs>99% and Rp<5%
Coating: Hypotenuse Face: -----------------------Polarization Beamsplitter Coating
All Input and Output Faces: -----------------------AR Coating
♦Principal Transmittance for 450~680nm: ----------Tp_avg>95% (Broadband)

Narrowband
Material: ---------------------------------------- N-BK7 or H-K9L Grade A optical glass
Standard wavelength: ---------- 488, 532, 633, 850, 980, 1064, 1310, 1550 nm

Broadband

Material:-------------N-SF2 or H-ZF1 optical glass , material for PBS(450-680nm ) is H-ZF2 （N-SF5）.
Coating wavelength:450-680, 650-850, 900-1200, 1250-1570, 1500-1610 nm

Size(mm)	Part No.
3.2x3.2x3.2	PBS5201
5x5x5	PBS5202
10x10x10	PBS5203
12.7x12.7x12.7	PBS5204
15x15x15	PBS5205
20x20x20	PBS5206
25.4x25.4x25.4	PBS5207

Ordering Information:

Part No. - wavelength
For example, PBS5201 - 1500-1610nm
Polarization Beamsplitter Cube 3.2x3.2x3.2 mm, 1500-1610nm broadband coating
