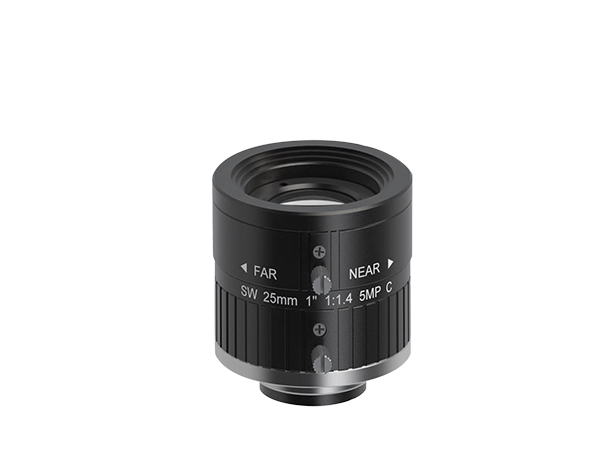

Short Wavelength Infrared Fixed Focus lenses



25mm

25mm
  • F1.4
  • 5MP
PDF Download



SWIR-25
Optical Parameter Value
Focal Length   25mm
F# 1.4
Resolution 5MP
Wavelength 900~1700nm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

C

Dimension Φ42x36.21mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
DxHxV 28.6°x21.5°x15.4°

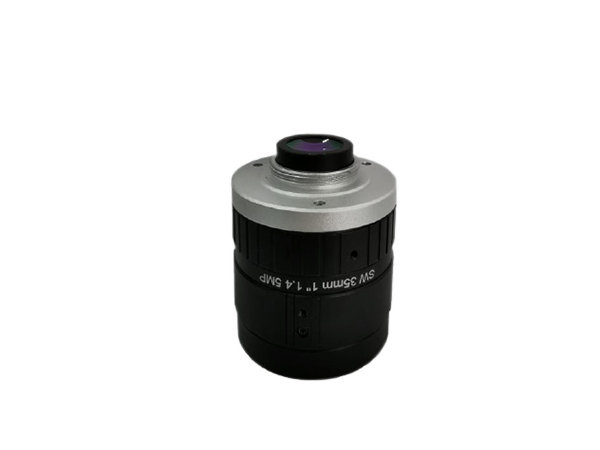

35mm

35mm
  • F1.4
  • 5MP
PDF Download



SWIR-25
Optical Parameter Value
Focal Length   25mm
F# 1.4
Resolution 5MP
Wavelength 900~1700nm
Mechanical Parameter Value
Focus Type Manual
Focus range /
Mount Type

C

Dimension Φ45x43.3mm
Weight /
Applicable Environment Value
Operating  Temperature -30℃~+70℃
Storage  Temperature -35℃~+75℃
Sealing /
Detector FOV
DxHxV 25.2°x20.3°x15.2°
