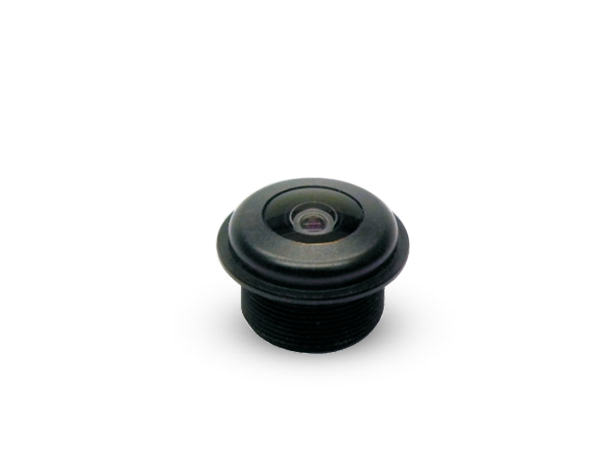

Automotive lens



0.95mm 2MP

0.95mm 2MP
  • 2MP
  • F1.65
PDF Download

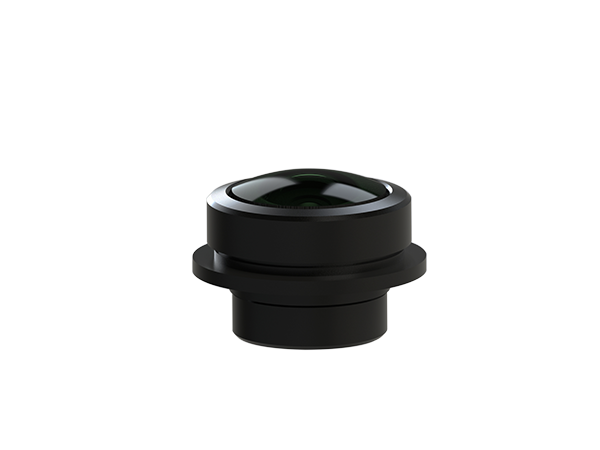

 ACL-D11-0.95(2MP)
Resolution 2Megapixel
Image format Φ4.75
Focal length 0.95mm
Aperture F1.65
Mount D11
Field Angle
D×H×V(°)
°" H4.032×V2.52
D 212°@3.9mm
H 195°@3.67
V 138
Optical Distortion -117%@195°
CRA /
M.O.D. /
Dimension Φ16×11.26mm
Weight /
Flange BFL /
BFL 2.2mm
MBF 1.74mm
Total Track Length 13mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection IP69K
Operating temperature -40℃~+105℃

1.38mm 2MP

1.38mm  2MP
  • 2MP
  • 1/2.7"
PDF Download

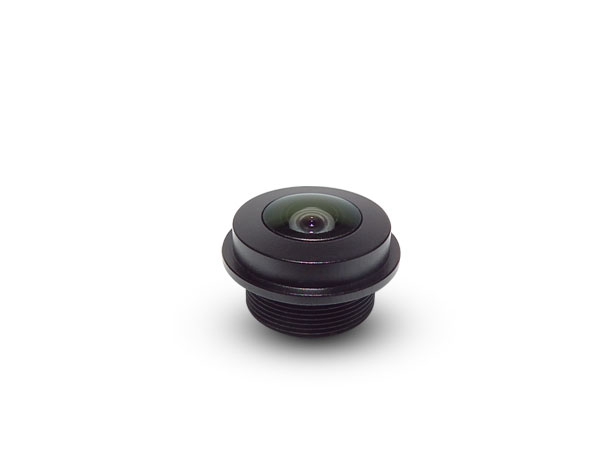

ACL-M12-1.38(2MP)
Resolution 2 Megapixel
Image format Φ4.7
Focal length 1.38mm
Aperture F2.0
Mount M12×0.5
Field Angle
D×H×V(°)
°" 1/2.7 1/3 1/3.7 1/4
D 180 180 180 173.2
H 180 180 154.5 138.5
V 153 138.5 114.15 105
Optical Distortion -100.00%
CRA ≤7.25°
M.O.D. 0.15m
Dimension Φ18×14.9mm
Weight 4g
Flange BFL /
BFL 2.28mm
MBF 1.75mm
IR Correction NO
Operation Iris Fixed
Focus Manual
Zoom /
Ingress Protection /
Operating temperature -20℃~+85℃

1.6mm MP

1.6mm  MP
  • MP
  • 1/3"
PDF Download

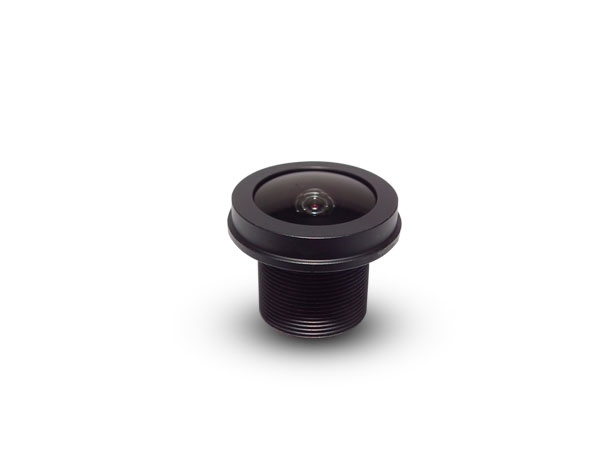

ACL-M12-1.6(MP)-2
Resolution  Megapixel
Image format Φ5
Focal length 1.6±5%mm
Aperture F2.5±10%
Mount M12×0.5
Field Angle
D×H×V(°)
±5%
°" 1/3" 1/3.7" 1/4"
D 200 200 170
H 188 151 138
V 134 108 102
Optical Distortion) -98%
M.O.D. 0.15m
Dimension Φ16×9.95mm
法Flange BFL /
BFL 3.51mm
MBF 2.97mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection /
perating temperature -40℃~+105℃

1.8mm MP

1.8mm MP
  • MP
  • 1/3"
PDF Download

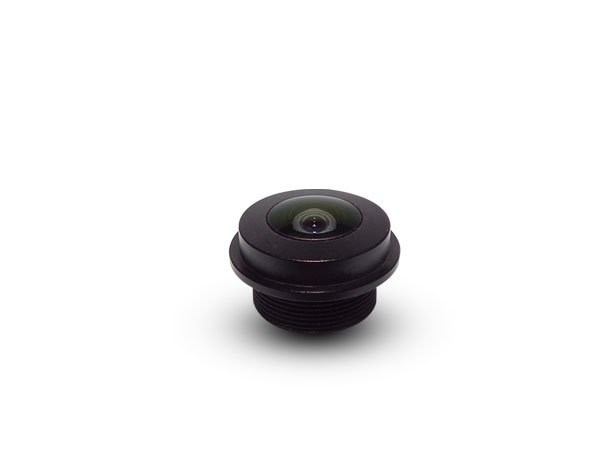

 ACL-M12-1.8(MP)
Resolution Megapixel
Image format Φ5.2
Focal length 1.8mm
Aperture F2.5
Mount M12×0.5
Field Angle
D×H×V(°)
°" 1/3 1/3.7 1/4
D 200 184 159.5
H 172.5 139 123
V 123 101 90.4
Optical Distortion -97%
CRA ≤8.8°
M.O.D. 0.2m
Dimension Φ16×10.3mm
Weight 5±1g
Flange BFL /
BFL 3.5mm
MBF 2.9mm
Total Track Length 13.2mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection /
Operating temperature -40℃~+105℃

2.1mm MP

2.1mm  MP
  • MP
  • 1/2.7"
PDF Download

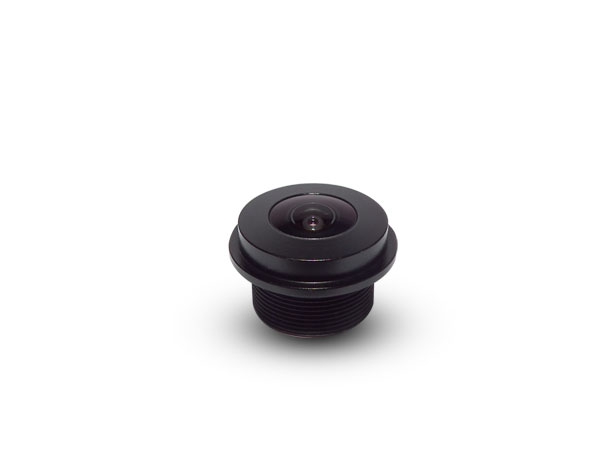

  ACL-M12-2.1(MP)
Resolution Megapixel
Image format Φ6.3
Focal length 2.1mm
Aperture F2.1
Mount M12×0.5
Field Angle
D×H×V(°)
°" 1/2.7 1/3 1/4
D 195 178 128
H 155 139 102
V 114 102 75
Optical Distortion) -97%
CRA ≤8.8°
M.O.D. 0.15m
Dimension Φ16×10.55mm
Weight 5±1g
Flange BFL /
BFL 4.53mm (in filter)
MBF 3.97mm (in filter)
Vibration Standard Sine Wave*2H*50HZ
Waterproof Standard 65KPA
IR Correction NO
操作方法
(Operation)
Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection /
Operating temperature -40℃~+105℃

3.2mm MP

3.2mm  MP
  • MP
  • 1/3"
PDF Download

 ACL-M12-3.2(MP)
Resolution Megapixel
Image format Φ6.3
Focal length 2.1mm
Aperture F2.1
Mount M12×0.5
Field Angle
D×H×V(°)
°" 1/3 1/3.7 1/4
D 100 100 90
H 99 78 68
V 68 55 50
Optical Distortion -36%
CRA ≤8.8°
M.O.D. 0.15m
Dimension Φ16×10.3mm
Weight 5±1g
Flange BFL /
BFL 3.1mm
MBF 2.5mm
Total Track Length 12.4mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection IP67
Operating temperature -40℃~+105℃


5.1mm 2MP

5.1mm 2MP
  • 2MP
  • F1.6
PDF Download



 ACL-D11-5.1(2MP)
Resolution 2Megapixel
Image format Φ7
Focal length 5.1mm
Aperture F1.6
Mount D11
Field Angle
D×H×V(°)
°" 1/2.6"
D 89.7°
H 70.3°
V 44.6°
Optical Distortion -32.7%
CRA /
M.O.D. /
Dimension Φ16×19.08mm
Weight /
Flange BFL /
BFL 4.2mm
MBF 3.81mm
Total Track Length 21.6mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection IP69K
Operating temperature -40℃~+85℃

6mm 8MP

6mm 8MP
  • 6mm
  • F1.6
PDF Download

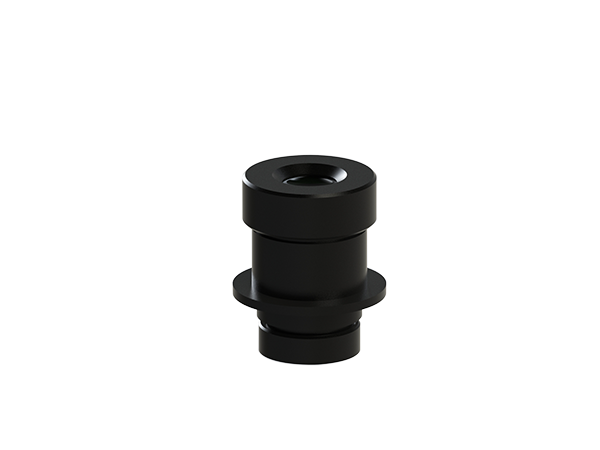

 ACL-M12-6(8MP)
Resolution 8Megapixel
Image format Φ8.2
Focal length 6mm
Aperture F1.6
Mount M12
Field Angle
D×H×V(°)
°" AR0820AT  AR0220AT
D 114.9°@4.130mm  104.8°@3.920mm
H 110.0°@4.032mm  100.4°@3.822mm
V 48.3°@2.268mm  40.8°@1.972mm
Optical Distortion -48.67%
CRA /
M.O.D. /
Dimension Φ13×21.54mm
Weight /
Flange BFL /
BFL 3.5mm
MBF 2.46mm
Total Track Length 24mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection /
Operating temperature -40℃~+105℃

6.2mm MP

6.2mm MP
  • 6.2mm
  • F1.6
PDF Download

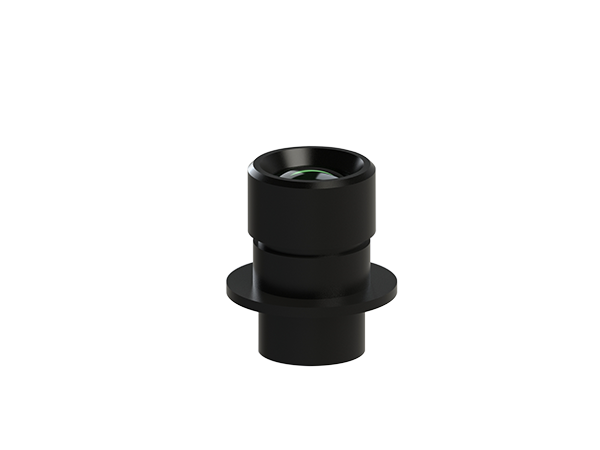

 ACL-D11-6.2(MP)

Resolution Megapixel
Image format Φ7
Focal length 6.2mm
Aperture F1.6
Mount D10
Field Angle
D×H×V(°)
°" 1/2.5"
D 73.3°
H 56.2°
V 36.3°
Optical Distortion -21.7%
CRA /
M.O.D. /
Dimension Φ12×15.39mm
Weight /
Flange BFL /
BFL 8.5mm
MBF 7.19mm
Total Track Length 21.6mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection /
Operating temperature -40℃~+85℃

12mm MP

12mm MP
  • 12mm
  • F1.6
PDF Download

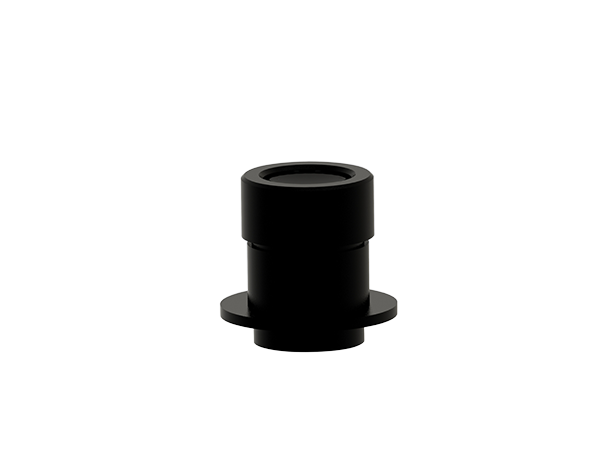

 ACL-D10-12(MP)
Resolution Megapixel
Image format Φ7.2
Focal length 12mm
Aperture F1.6
Mount D10
Field Angle
D×H×V(°)
°" 1/2.5"
D 33.7°
H 27.2°
V 18.3°
Optical Distortion -0.6%
CRA /
M.O.D. /
Dimension Φ12×18.73mm
Weight /
Flange BFL /
BFL 5mm
MBF 3.17mm
Total Track Length 21.5mm
IR Correction NO
Operation Iris  Fixed
Focus  Manual
Zoom  /
Ingress Protection /
Operating temperature -40℃~+85℃
