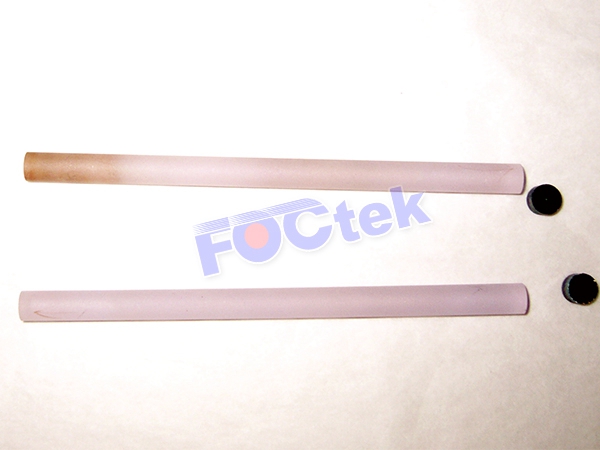

Although Nd:YAG was invented in the Sixties last century, it has been and is still the most commonly used solid-state crystal material. Nd:YAG crystals are wildly used in all types of solid-state lasers systems-frequency-doubled continuous wave, high-energy Q-switched, and so forth.

Its good fluorescent lifetime thermal conductivity and physical strengths makes it suitable for high power lamp pumped laser.

 Capabilities

1)
Nd Dopant Concentration:
0.5-1.2 atm%tolerance within 10% of concentration
2)
Diameter:
3 ~ 14mm
3)
Length:
1~ 160mm
Typical Specification and Tolerance:
1)
Orientation:
<111> crystalline direction (+/-0.5℃)
2)
Wavefront Distortion:
<l/10 at 632.8nm for 3 ~ 7mm
<l/8 per inch at 632.8nm for >=7mm
3)
Surface Quality:
better than 20/10 Scratch/Dig per MIL-O-1380A
4)
Parallelism:
< 10 arc seconds
5)
Perpendicularity:
< 5 arc minutes
6)
Surface Flatness:
<l/10 at 632.8nm
7)
Clear Aperture:
Central 90%
8)
Chamfer:
0.15x45o
9)
Damage Threshold:
> 15J/cm2(uncoated )
> 700 MW/cm2(coated)
10)
Coatings:

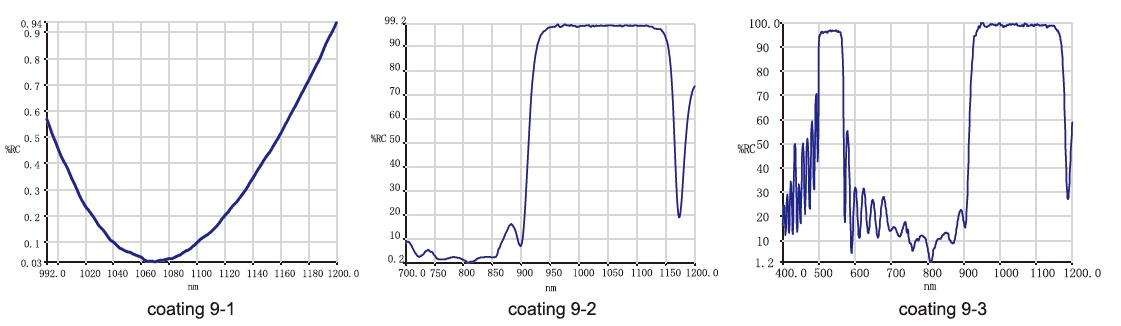

a)AR@1064nm, R<0.1%; (see coating 9-1)
b)AR@1064nm, R< 0.1%;HT@808nm, T>95%;(see coating 6-2)
c)HR@1064nm, R>99.8%; HT@808nm, T>95%;(see coating 9-2)
d)HR@1064nm, R>99.8%; HT@808nm, T>95%; HR@532nm, R>99%;(see coating 9-3)

Notes:

To inquiry or order a finished Nd:YAG laser rod, please specify the specification listed above, for common application, we only need to know the main specification: Nd-dopant concentration, sizes, and coating. For special request, please specify specification in details for evaluation and fabrication.
Physical and Optical Properties
Chemical Formula Nd:Y3A15O12
Crystal Structure Cubic
Lattice Constants 12.01Ä
Concentration ~ 1.2 x 1020 cm-3
Melting Point 1970 °C
Density 4.56 g/cm3
Mohs Hardness 8.5
Refractive Index 1.82
Thermal Expansion Coefficient 7.8 x 10-6 /K [111], 0 - 250 °C
Thermal Conductivity 14 W/m /K @20 °C, 10.5 W /m /K @100 °C.
Lasing Wavelength 1064 nm
Stimulated Emission Cross Section 2.8x10-19 cm-2
Relaxation Time of Terminal Lasing Level 30 ns
Radiative Lifetime 550 ms
Spontaneous Fluorescence 230 ms
Loss Coefficient 0.003 cm-1 @ 1064 nm
Effective Emission Cross Section 2.8 x 10-19 cm2
Pump Wavelength 807.5 nm
Absorption band at pump wavelength 1 nm
Linewidth 0.6 nm
Polarized Emission Unpolarized
